SmileInspector June, 2026 Release
The June 2026 release adds pontics for cases with missing teeth, a CBCT tooth-to-bone heatmap, extractions staged partway through treatment, and staging, trimline and Doctor Viewer improvements.
This release expands the range of cases you can plan in SmileInspector. You can now plan cases with missing teeth using pontics, see how teeth sit relative to the surrounding bone with a new CBCT heatmap, and stage tooth extractions partway through treatment.
Highlights

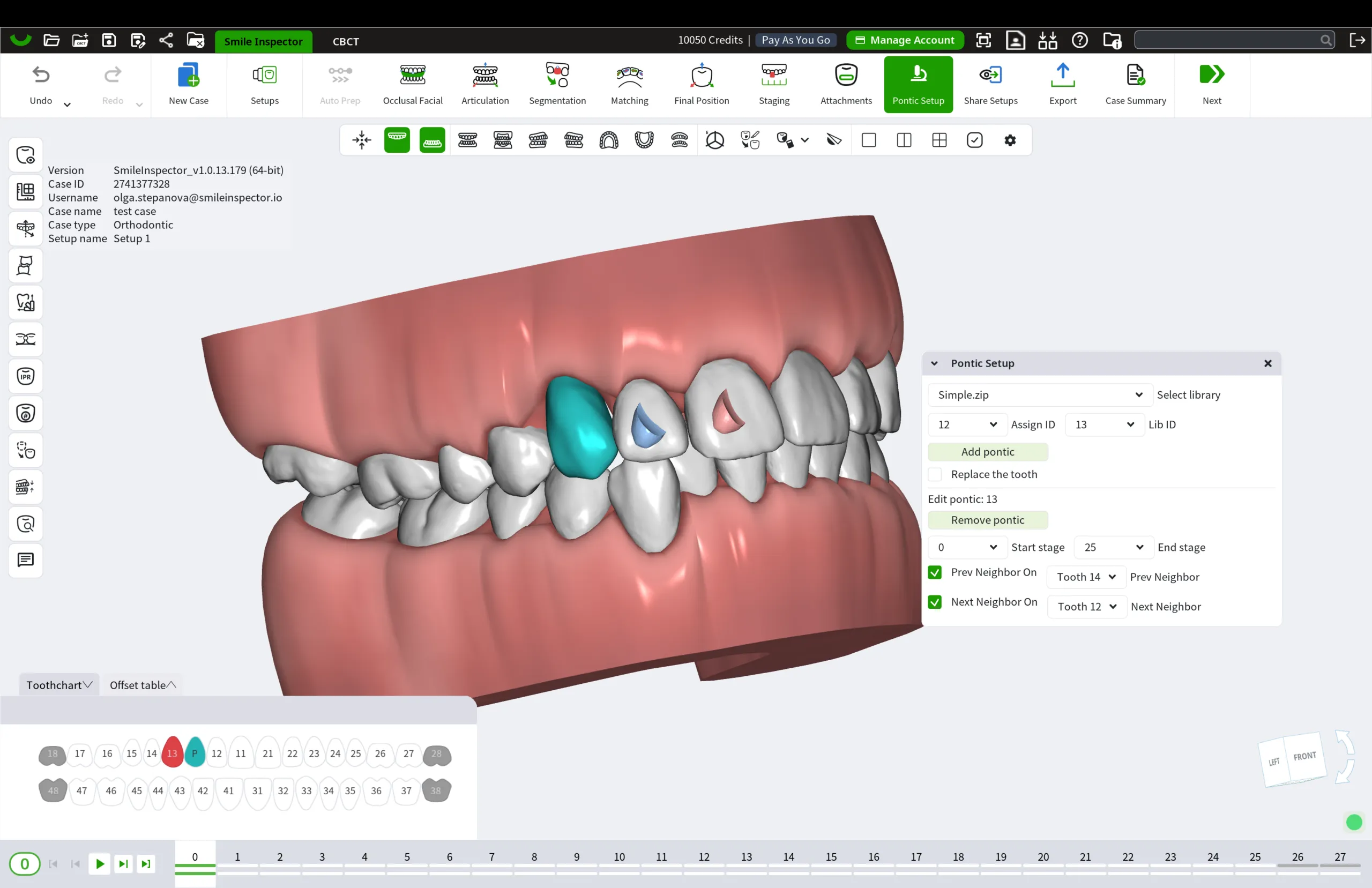

Pontics
Plan cases with missing teeth. Add a pontic where a tooth is missing, follow it through the whole case, and let doctors review it.
- New Pontic Setup menu in the Ribbon
- Add a pontic from the library where a tooth is missing
- Replace an existing tooth with a pontic
- Remove a pontic and assign or unassign neighboring teeth
- Pontics adjust automatically as neighboring teeth move
- Sculpting supported for pontics

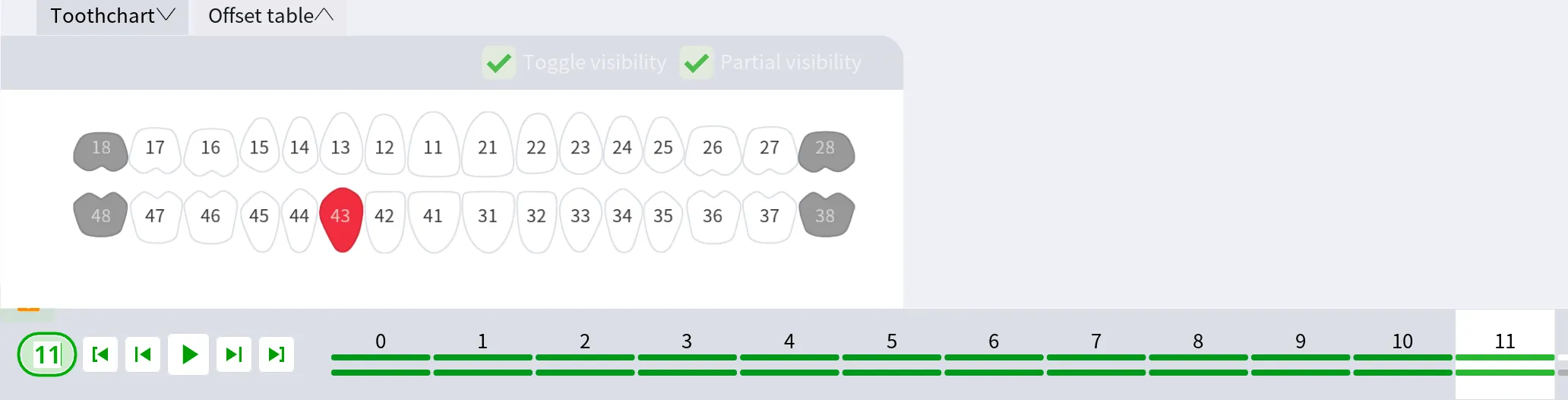

- Pontic shown in the Tooth Chart, Offset Table, and Staging Table
- New Pontics item in the Visibility menu, with a distinct color in the scene
- Move and scale pontics in Doctor Viewer

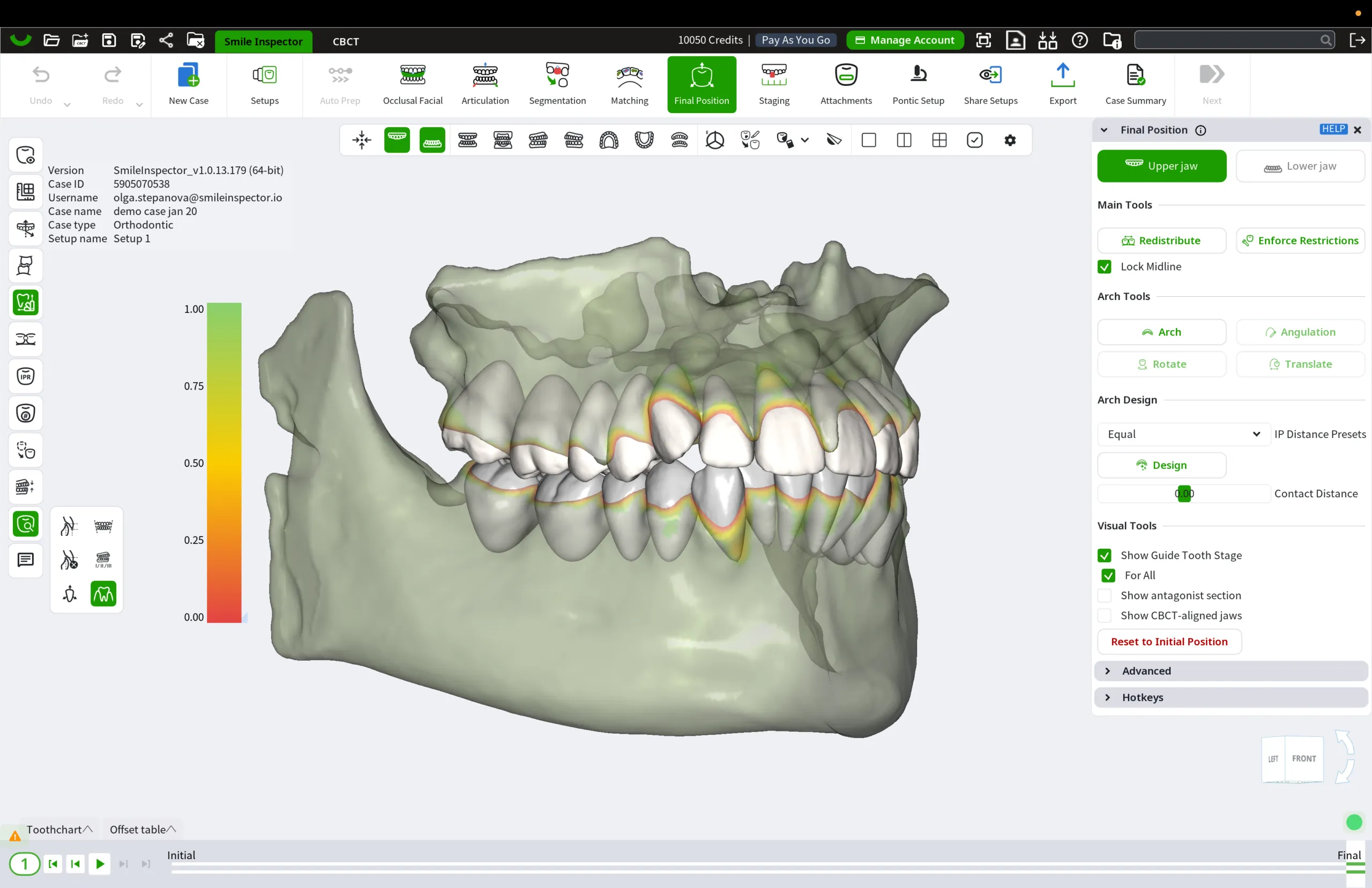

CBCT tooth-to-bone heatmap
See where teeth sit relative to the surrounding bone as you plan CBCT cases.
- New CBCT mode that shows tooth-to-bone protrusion as a heatmap

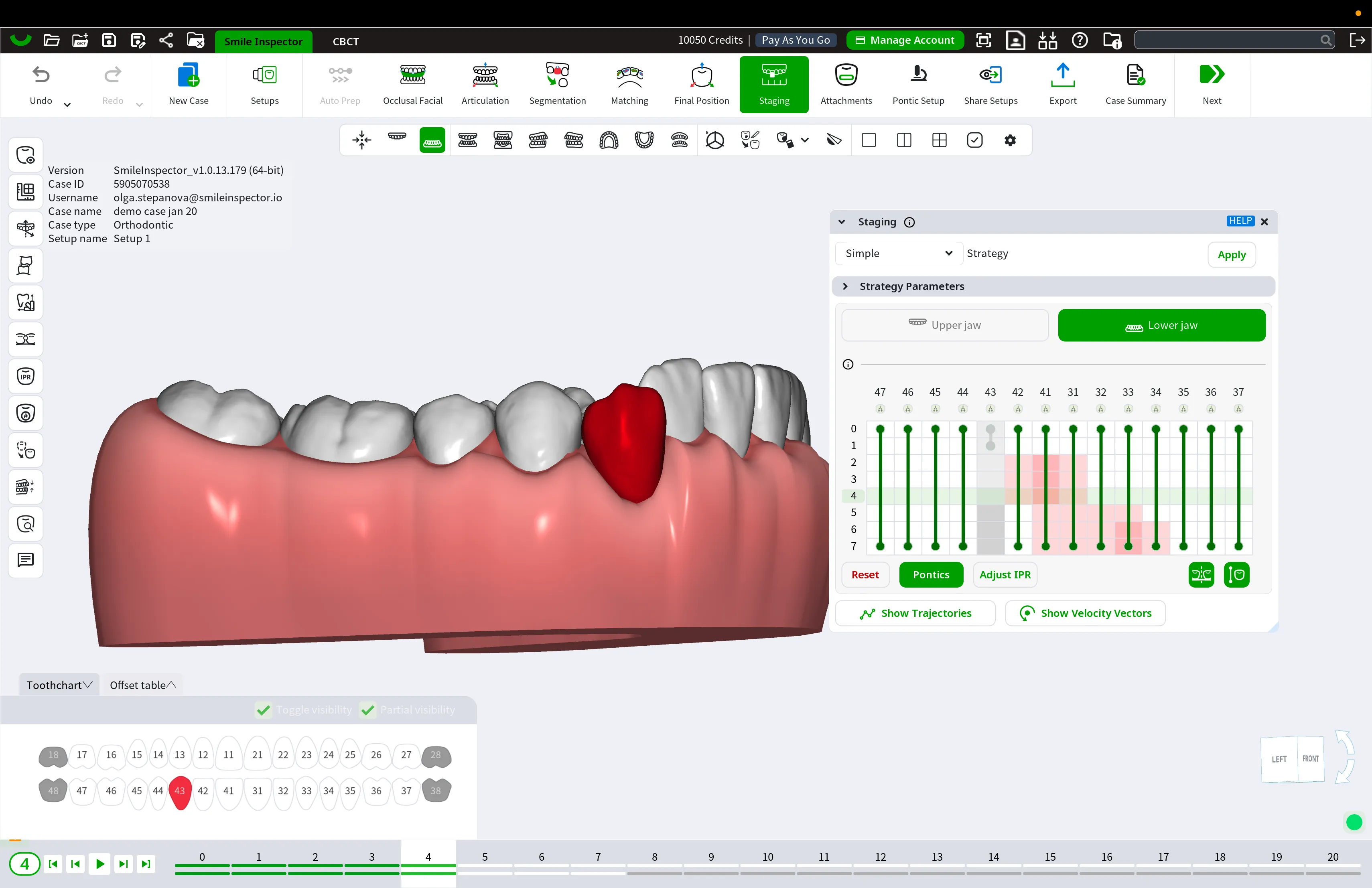

Extraction on intermediate stages
Plan extraction cases more realistically.
- Stage a tooth extraction at an intermediate step, not only at the start
Staging improvements
Smoother work while staging a case.
- Type a stage number in Stage Player to jump straight to it
- New tooltips on staging key points
- New Average button in staging
CBCT workflow
- Cleaner, more refined final teeth after merge
Attachments
- The Load library button now appears in SmileInspector, not in Doctor Viewer
- New attachments are additive by default
Trimline
- Improved and more stable trimline calculation
- Additional trimline normals improvements
Doctor Viewer
- Open a specific allowed case revision directly from a shared link
Other improvements
- Save screenshots from a case directly to the portal
- New transparency controls in the Visibility menu
- New setting to hide controls for the Dental Object Control tool
- Stability and crash fixes across staging, CBCT, and Doctor Viewer
Questions or feedback? Contact us at support@smileinspector.io.
